Sync Cord Identification

Picture Guide

PC Male / PC Female

Vivitar

Screwlock PC

PC Male / Metz (for 45CT or CL)

PC Male / Dynalite

PC Male / Household (aka HH)

Pnono Male / 3.5mm Male.

MM3 Mini

Household / Phono Female

Female Phono / Elinchrom Amphenol

Sunpak (Handle Mount Strobes)

PC / Sunpak Plug (not 3.5mm)

HH (Household) Male / HH Female

PC / Metz Pin

Vintage Connectors

     The following sync cord types are for true vintage cameras and strobes.   Only a few photographers who use pre-1970's camera equipment will ever need this information.   If you have any of these vintage cords please contact me as I would like to add them to my collection.

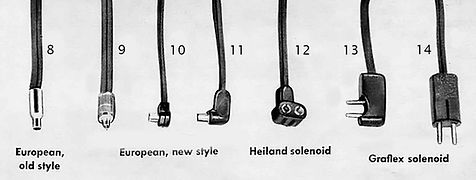

     The #'s on these pics are used to describe the ends of the connectors.   Each cable has two ends.  The chart below lists some corresponding usable brands.

1-1
1-25
1-26
1-28, 29
2-7
2-26
2-27
2-28, 29
3-4
4-7
5-5
5-25
5-26
5-28, 29
6-26
6-27
6-28, 29
7-2
7-4
7-7
7-10, 11
7-24
8-26
8-27
8-28
9-27
10-11-4
10-11-8
10-11-26

Spiratone (#1 has thin shell to fit Kodak ASA bayonet, male #25)
Kodak (#1 has thin shell)
Spiratone
Spiratone
Jen
C.O.C., Graflex, Heiland
C.O.C., Kalart, Praco
Kalart, C.O.C.
Polaroid
Jen (shape as #18)
Spiratone (for old style Graflex guns)
Kodak (#25 has special collar, will accept only thin shell, such as #1)
Graflex, Heiland, Praco, Spiratone
Spiratone
C.O.C.
C.O.C. Kalart
C.O.C. Kalart
Jen
Jen (shape as #18)
Jen
Jen
Jen
Graflex
Kalart
Kalart
C.O.C., Kalart
Jen (shape as #18)
Jen
C.O.C., Graflex, Heiland, Praco, Spiratone

more Vintage Connectors

Graflex Solenoid Female Plug

Bi-Post Female +1 Pin / Single Post + 1 Pin

unknown

Bi-Post Graflex / Household (HH)

METZ 45 - 47 Standard
